TECHNICAL SPECIFICATION

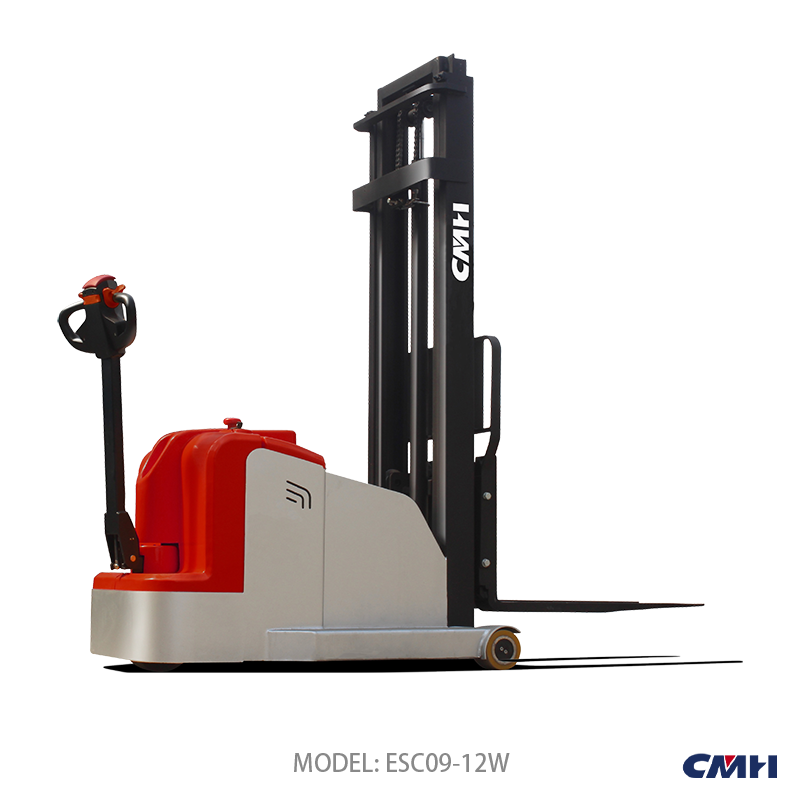

| General | 1 | Model | ESC09W | ESC10W | ESC12W | |
| 2 | Power | Electric | Electric | Electric | ||
| 3 | Operation mode | Walkie | Walkie | Walkie | ||
| 4 | Rated capacity | Q(Kg) | 900 | 1000 | 1200 | |
| 5 | Load center | C(mm) | 500 | 500 | 500 | |
| 6 | Front overhang | X(mm) | 71 | 71 | 85 | |
| 7 | Wheelbase | Y(mm) | 1070 | 1340 | 1312 | |
| Dimension | 8 | Mast closed height | H1(mm) | 2065 | 2065 | 2115 |
| 9 | Free lift height | h2(mm) | 0 | 0 | 0 | |
| 10 | Lifting height | H(mm) | 3000 | 3000 | 3000 | |
| 11 | Mast extended height (include backrest) | H2(mm) | 3913 | 3913 | 3913 | |
| 12 | Min fork height | H3(mm) | 35 | 35 | 35 | |
| 13 | Overall length (include/exclude forks) | L(mm) | 1380/2301 | 1652/2573 | 1684/2612 | |
| 14 | Overall width | b1(mm) | 916 | 916 | 886 | |
| 15 | Fork dimension | s/e/l(mm) | 920*100*35 | 920*100*35 | 1070*100*35 | |
| 16 | Fork adjust range (outside) | b5(mm) | 200-580 | 200-580 | 200-580 | |
| 17 | Min groud clearance | m2(mm) | 40 | 40 | 72 | |
| 18 | Stacking channel width, pallet 1000×1200 (1000 way) | Ast(mm) | 2720 | 2956 | 2846 | |
| 19 | Stacking channel width, pallet 1000×1200 (1200 way) | Ast(mm) | 2859 | 3094 | 3083 | |
| 20 | Min. turning radius | Wa(mm) | 1257 | 1528 | 1480 | |
| Performance | 21 | Traveling speed, (unload/load) | km/h | 4.0/3.5 | 4.0/3.5 | 4.0/3.5 |
| 22 | Lifting speed, (unload/load) | m/s | 0.215/0.145 | 0.215/0.130 | 0.215/0.130 | |
| 23 | Lowering speed, (unload/load) | m/s | 0.105/0.125 | 0.105/0.130 | 0.105/0.130 | |
| 24 | Max. gradeability, (unload/load) | ％ | 5.0/4.5 | 5.0/4.0 | 5.0/4.0 | |
| Electrical | 25 | Driving motor | kw | 0.75 | 0.75 | 1.5 |
| 26 | Lifting motor | kw | 2.2 | 2.2 | 2.2 | |
| 27 | Battery | Lead Acid Gel | Lead Acid Gel | Lead Acid Gel | ||
| 28 | Battery voltage / capacity | V/Ah | 24/100 | 24/100 | 24/150 | |
| 29 | Charger | V/A | 24V/10A | 24V/10A | 24/20A | |
| 30 | Control model | DC | DC | AC | ||
| 31 | Brake type | Electromagnetic | Electromagnetic | Electromagnetic | ||
| Wheel | 32 | Wheel type | PU | PU | PU | |
| 33 | Driving wheel | ∅×w(mm) | Φ140×100 | Φ140×100 | Φ210×85 | |
| 34 | Front wheel | ∅×w(mm) | Φ210×70 | Φ210×70 | Φ250×80 | |
| 35 | Rear wheel | b2(mm) | 816 | 816 | 801 | |
| 36 | The noise level in the driver’s ear | dB(A) | 70 | 70 | 70 | |
| 37 | Service weight (include battery) | kg | 1290 | 1320 | 1480 |
CMH® retains the right to adjust the specification and configurations to improve the performance without notice, please contact us at info@cmhlift.com to get the newest information.
