TECHNICAL SPECIFICATION
| General | 1 | Brand | CMH | CMH | CMH | CMH | CMH | CMH | |

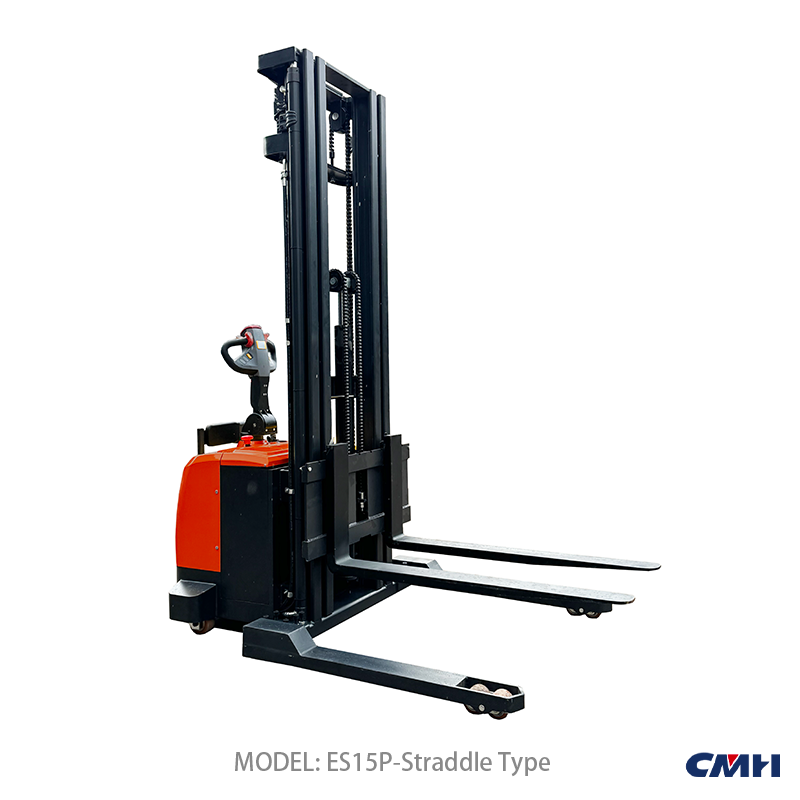

| 2 | Model | ES15P | ES15P | ES15P | ES15P | ES15P | ES15P | ||
| 3 | Power type | Battery | Battery | Battery | Battery | Battery | Battery | ||
| 4 | Operation type | Standing | Standing | Standing | Standing | Standing | Standing | ||
| 5 | Rated capacity | kg | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | |
| 6 | Load center | mm | 500 | 500 | 500 | 500 | 500 | 500 | |
| 7 | Service weight | kg | 1100 | 1135 | 1175 | 1215 | 1250 | 1300 | |
| Dimension | 8 | Lift height | mm | 3600 | 4000 | 4500 | 5000 | 5500 | 6000 |
| 9 | Mast lowered height | mm | 1780 | 1920 | 2080 | 2240 | 2400 | 2560 | |
| 10 | Mast extended height with backrest | mm | 4200 | 4600 | 5100 | 5600 | 6100 | 6600 | |
| 11 | Free lift height | mm | 100 | 100 | 100 | 100 | 100 | 100 | |
| 12 | Overall length | mm | 2080 | 2080 | 2080 | 2080 | 2080 | 2080 | |
| 13 | Overall width | mm | 1016 | 1016 | 1016 | 1016 | 1016 | 1016 | |
| 14 | Fork lowered height | mm | 90 | 90 | 90 | 90 | 90 | 90 | |
| 15 | Fork size | mm | 1070 | 1070 | 1070 | 1070 | 1070 | 1070 | |
| 16 | Inner fork width | mm | 900-1400 | 900-1400 | 900-1400 | 900-1400 | 900-1400 | 900-1400 | |
| 17 | Fork carriage width | mm | 820 | 820 | 820 | 820 | 820 | 820 | |
| 18 | Min. ground clearance | mm | 25 | 25 | 25 | 25 | 25 | 25 | |
| 19 | Aisle width for pallet 1000x1200mm | mm | 2780 | 2780 | 2780 | 2780 | 2780 | 2780 | |
| 20 | Aisle width for pallet 800x1200mm | mm | 2860 | 2860 | 2860 | 2860 | 2860 | 2860 | |
| 21 | Turning radius | mm | 1810 | 1810 | 1810 | 1810 | 1810 | 1810 | |
| 22 | Wheelbase | mm | 1370 | 1370 | 1370 | 1370 | 1370 | 1370 | |
| Wheel | 23 | Tyre type | PU | PU | PU | PU | PU | PU | |
| 24 | Tyre size, drive wheel | mm | Φ248×75 | Φ248×75 | Φ248×75 | Φ248×75 | Φ248×75 | Φ248×75 | |
| 25 | Tyre size, load wheel | mm | Φ80×70 | Φ80×70 | Φ80×70 | Φ80×70 | Φ80×70 | Φ80×70 | |
| 26 | Tyre size, balance wheel | mm | Φ115×55 | Φ115×55 | Φ115×55 | Φ115×55 | Φ115×55 | Φ115×55 | |
| 27 | Tyre number, drive/load/balance | 1/4/2 | 1/4/2 | 1/4/2 | 1/4/2 | 1/4/2 | 1/4/2 | ||
| 28 | Tread, front | mm | 800 | 800 | 800 | 800 | 800 | 800 | |
| 29 | Tread, rear | mm | 410/525 | 410/525 | 410/525 | 410/525 | 410/525 | 410/525 | |
| Performance | 30 | Travel speed, laden/unladen | km/h | 4.2/5.6 | 4.2/5.6 | 4.2/5.6 | 4.2/5.6 | 4.2/5.6 | 4.2/5.6 |
| 31 | Lift speed, laden/unladen | mm/s | 130/200 | 130/200 | 130/200 | 130/200 | 130/200 | 130/200 | |
| 32 | Lowering speed, laden/unladen | mm/s | 196/178 | 196/178 | 196/178 | 196/178 | 196/178 | 196/178 | |
| 33 | Max. gradeability, laden/unladen | %(tanθ ) | 6/10 | 6/10 | 6/10 | 6/10 | 6/10 | 6/10 | |
| Electrical | 34 | Drive motor | kw | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| 35 | Lift motor | kw | 3 | 3 | 3 | 3 | 3 | 3 | |
| 36 | Battery type | Lead acid | Lead acid | Lead acid | Lead acid | Lead acid | Lead acid | ||
| 37 | Battery, voltage/capacity | V/Ah | 24/210-270 | 24/210-270 | 24/210-270 | 24/210-270 | 24/210-270 | 24/210-270 | |
| 38 | Battery option | Lithium | Lithium | Lithium | Lithium | Lithium | Lithium | ||
| 39 | Steering type | EPS | EPS | EPS | EPS | EPS | EPS | ||
| 40 | Service brake | Electromagnetic | Electromagnetic | Electromagnetic | Electromagnetic | Electromagnetic | Electromagnetic |
CMH® retains the right to adjust the specification and configurations to improve the performance without notice, please contact us at info@cmhlift.com to get the newest information.
