TECHNICAL SPECIFICATION
| Specification | 1 | Brand | CMH | |

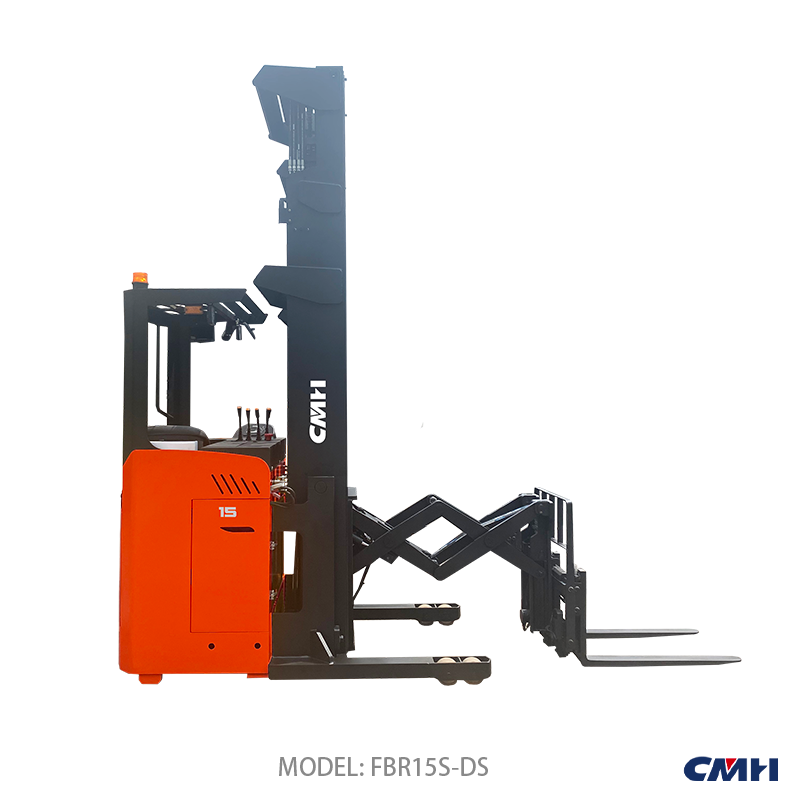

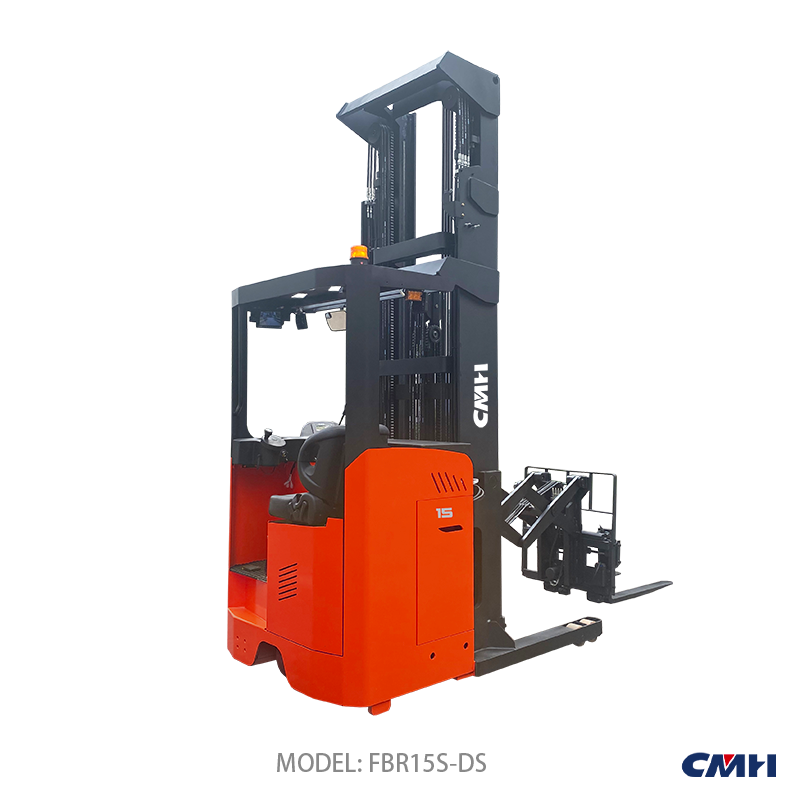

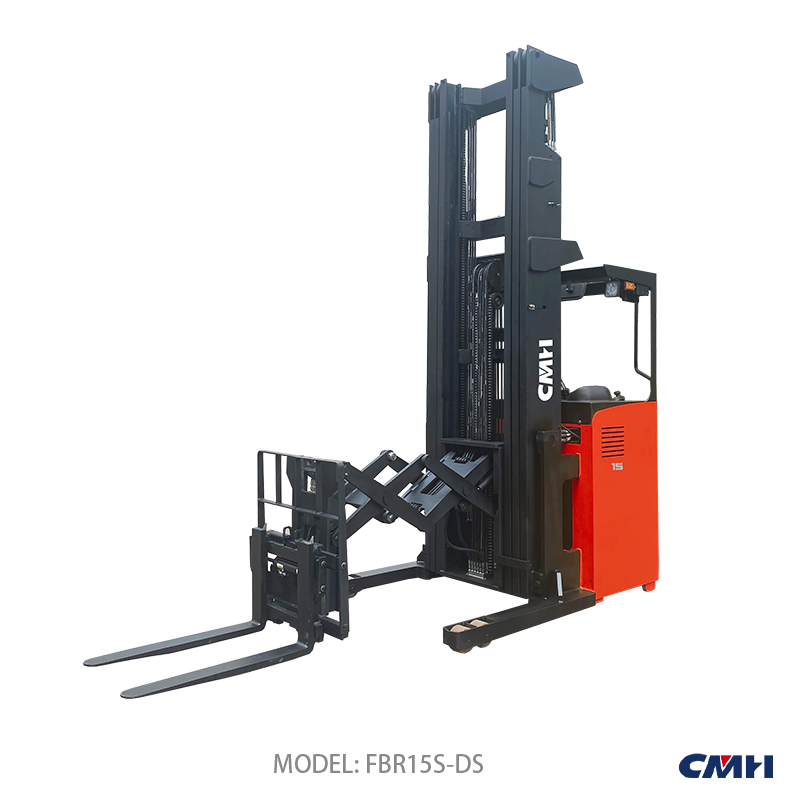

| 2 | Model | FBR15S-DS | ||
| 3 | Power | Battery | ||
| 4 | Operation | Sit-on | ||
| 5 | Rated Load Capacity | Q (kg) | 1500 | |
| 6 | Load Centre | C (mm) | 500 | |
| 7 | Load Capacity at 1st Rack | kg | 300 | |
| Load Capacity at 2nd Rack | kg | 250 | ||
| 8 | Lift Height | H3 (mm) | 10000 | |
| 9 | Fork Size | mm | 920 | |
| 10 | Fork Adjust Range | mm | 260-700 | |
| 11 | Shift Range | mm | ±60 | |
| 12 | F/B(α°/β°) | Deg | 3°/5° | |
| Dimensions | 13 | Length (To Fork Face) | L1 (mm) | 2905 |
| 14 | Width | B1 (mm) | 1520 | |
| 15 | Mast Lowered Height | H1 (mm) | 4700 | |
| 16 | Overhead Guard Height | H5 (mm) | 2260 | |
| 17 | Turning Radius | Wa (mm) | 1930 | |
| 18 | Ground Clearance | H6 (mm) | 40 | |
| 19 | Fork Carriage Reach Distance | X(mm) | 1000 | |
| 20 | Working Aisle Width With Pallet (1000×1000) | Ast (mm) | 3200 | |
| Performance | 21 | Travel Speed (Full Load) | km/h | 7.5 |
| 22 | Travel Speed (No Load) | km/h | 8.0 | |
| 23 | Lifting Speed (Full Load) | mm/s | 160 | |
| 24 | Lifting Speed (No Load) | mm/s | 260 | |
| 25 | Max. Gradeability (Full Load / No Load) | % | 4/6 | |
| 26 | Total Weight (Contains the battery) | Kg | 4250 | |
| 27 | Drive Wheel | mm | 343*135 | |
| 28 | Front Wheel | mm | 130*85 | |
| 29 | Balance Wheel | mm | 180*76 | |
| Drive System | 30 | Diver Motor | Kw | 6.3 |
| 31 | Pump Motor | Kw | 4.5 | |
| 32 | Battery (Standard) | V/Ah | 48/450 | |
| 33 | Steering System | Electronic | ||
| 34 | Service Brake | Electromagnetic | ||
| 35 | Controller Type | AC | ||
| 36 | Controller Manufacturer | Curtis |
CMH® retains the right to adjust the specification and configurations to improve the performance without notice, please contact us at info@cmhlift.com to get the newest information.
