TECHNICAL SPECIFICATION
| 1 | Brand | CMH | CMH | |

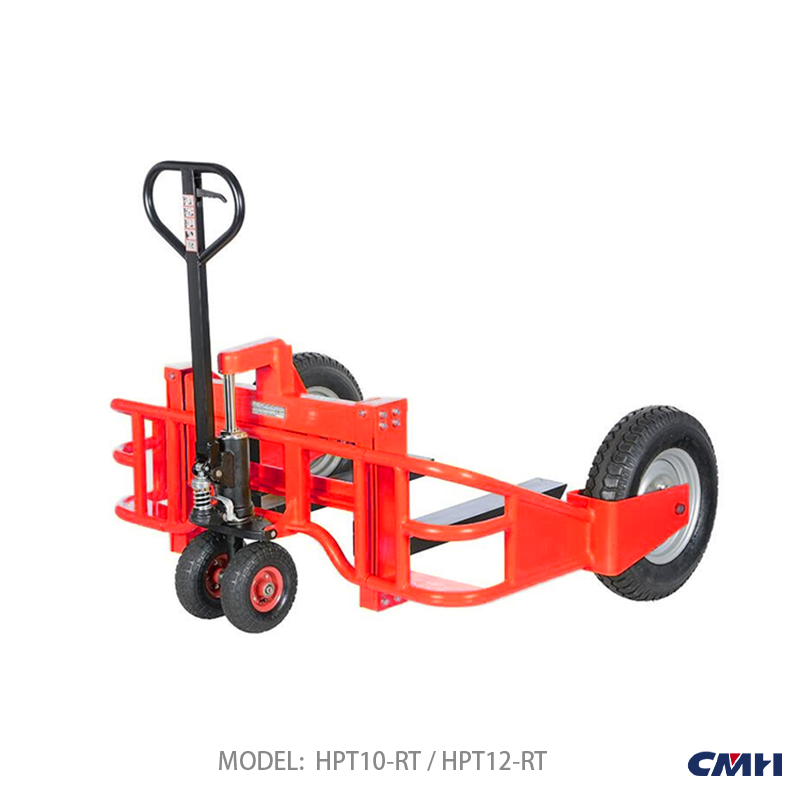

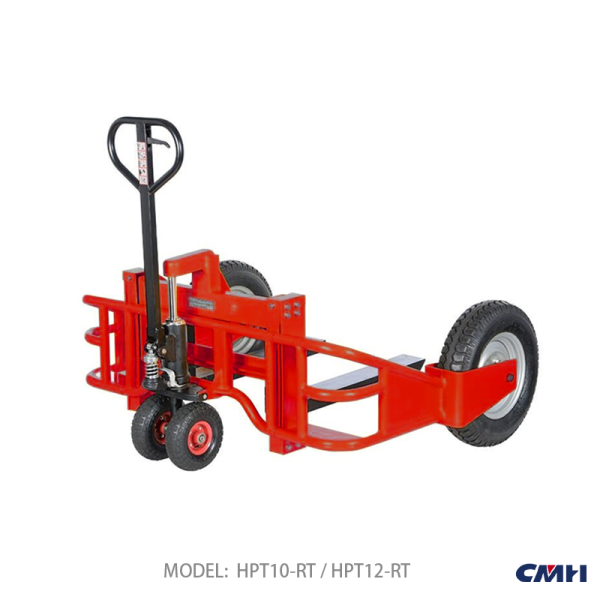

| 2 | Model | HPT10-RT | HPT12-RT | |
| 3 | Rated Capacity | kg | 1000 | 1250 |
| 4 | Load Center | mm | 400 | 400 |
| 5 | Power Supply | Manual | Manual | |
| 6 | Operating Type | Pedestrian | Pedestrian | |
| 7 | Fork Width | mm | 216-680 | 256-680 |
| 8 | Fork Length | mm | 1000 | 1000 |
| 9 | Min. Fork Height | mm | 70 | 70 |
| 10 | Max. Fork Height | mm | 240 | 240 |
| 11 | Load Wheel | mm | 568*145 | 568*145 |
| 12 | Net Weight | kg | 210 | 238 |
| 13 | Overall Size | mm | 1406*1670*1280 | 1406*1670*1280 |
CMH® retains the right to adjust the specification and configurations to improve the performance without notice, please contact us at info@cmhlift.com to get the newest information.
