TECHNICAL SPECIFICATION
| General | 1 | Brand | CMH | CMH | |

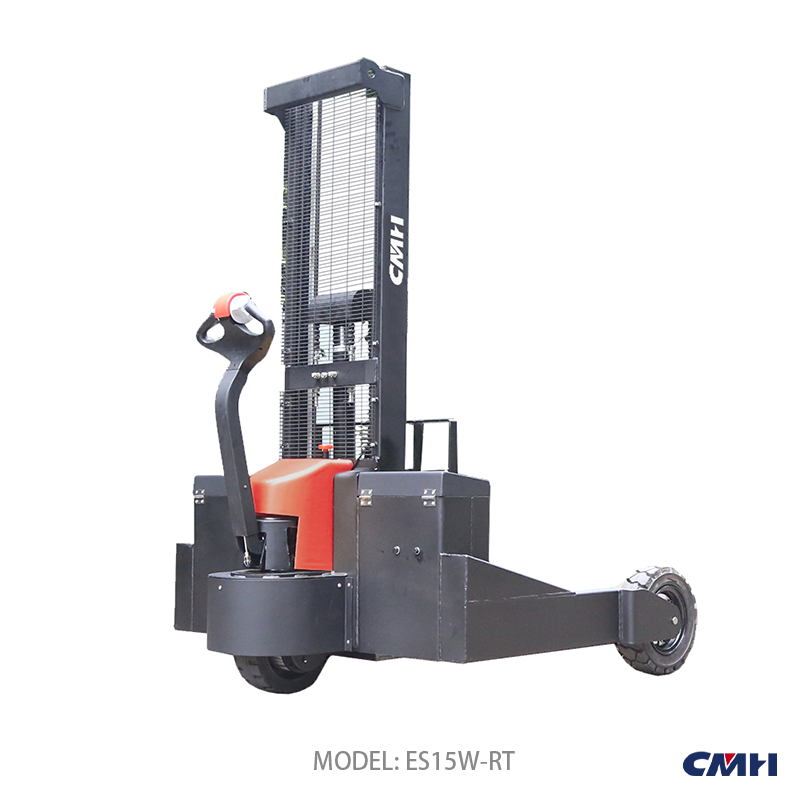

| 2 | Model | ES10W-RT | ES15W-RT | ||
| 3 | Power type | Battery | Battery | ||
| 4 | Operation type | Pedestrian | Pedestrian | ||
| 5 | Rated capacity | kg | 1000 | 1500 | |
| 6 | Load center | mm | 500 | 500 | |
| 7 | Front overhang | mm | 666 | 666 | |
| 8 | Service weight | kg | 920 | 920 | |
| Dimension | 9 | Lift height | mm | 2500 | 2500 |
| 10 | Mast lowered height | mm | 1915 | 1915 | |
| 11 | Mast extended height | mm | 3510 | 3510 | |
| 12 | Overall length | mm | 1954 | 1954 | |
| 13 | Overall width | mm | 1590 | 1590 | |
| 14 | Fork dimension | mm | 35x100x1070 | 35x100x1070 | |
| 15 | Fork adjust range | mm | 220-680 | 220-680 | |
| 16 | Fork carriage width | mm | 756 | 756 | |
| 17 | Distance between support legs | mm | 1280 | 1280 | |
| 18 | Wheelbase | mm | 1343 | 1343 | |
| 19 | Ground clearance | mm | 127 | 127 | |
| 20 | Aisle width for pallet 1000×1200 crossways | mm | 2570 | 2570 | |
| 21 | Turning radius | mm | 1550 | 1550 | |
| Wheel | 22 | Tyre | Solid rubber | Solid rubber | |
| 23 | Tyre size, drive wheel | mm | Φ300×80 | Φ300×80 | |
| 24 | Tyre size, load wheel | mm | 4.0-8 | 4.0-8 | |
| 25 | Tyre number, load/drive (x=driven wheel) | 2/1x | 2/1x | ||
| 26 | Axle load, drive wheel/load wheel, laden | kg | 595/1325 | 750/1670 | |
| 27 | Axle load, drive wheel/load wheel, unladen | kg | 570/350 | 570/350 | |
| Performance | 28 | Travel speed, laden/unladen | km/h | 3.5/4.0 | 3.5/4.0 |
| 29 | Lift speed, laden/unladen | mm/s | 13/25 | 13/25 | |
| 30 | Max. gradeability, laden/unladen | % | 6/10 | 5/10 | |
| 31 | Noise level | dB | 70 | 70 | |
| Electrical | 32 | Drive motor | kw | 1.5 | 1.5 |
| 33 | Lift motor | kw | 2.2 | 2.2 | |
| 34 | Type of drive control | AC | AC | ||
| 35 | Battery type | Lead acid | Lead acid | ||
| 36 | Battery, voltage/capacity | V/Ah | 24/100 | 24/100 | |
| 37 | Battery, weight | kg | 64 | 64 | |
| 38 | Battery option | Lithium | Lithium | ||
| 39 | Steering type | Mechanical | Mechanical | ||
| 40 | Service brake | Electromagnetic | Electromagnetic |
CMH® retains the right to adjust the specification and configurations to improve the performance without notice, please contact us at info@cmhlift.com to get the newest information.
