TECHNICAL SPECIFICATION
| General | 1 | Brand | CMH | |

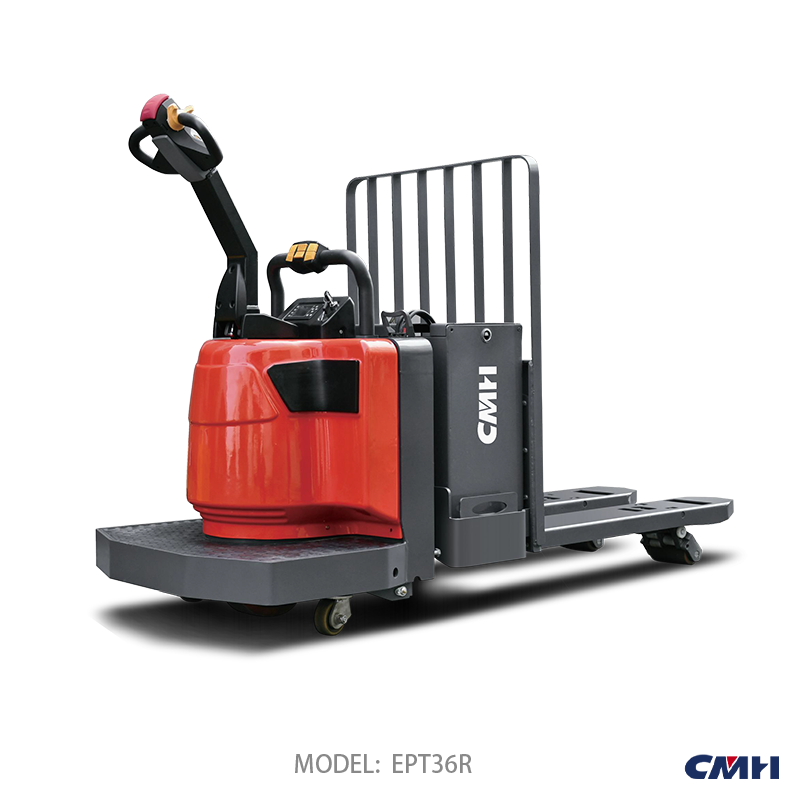

| 2 | Model | EPT36R | ||
| 3 | Power type | Battery | ||
| 4 | Operation type | Standing | ||
| 5 | Rated capacity | Q (kg) | 3600 | |
| 6 | Load center | C (mm) | 600 | |
| 7 | Service weight | kg | ||
| Dimension | 8 | Lift height | h2 (mm) | 222.5 |
| 9 | Min. fork height | h3 (mm) | 82.5 | |
| 10 | Overall length | l1 (mm) | 2372 | |
| 11 | Overall width | b1 (mm) | 935 | |
| 12 | Overall height, min/max | h14 (mm) | 1095/1530 | |
| 13 | Fork size | s/e/l (mm) | 62x232x1215 | |
| 14 | Outer fork width | b2 (mm) | 686 | |
| 15 | Min. ground clearance | m2 (mm) | 132 | |
| 16 | Min. turning radius | Wa (mm) | 2130 | |
| 17 | Aisle width for pallet 1000×1200 | Ast (mm) | 2586 | |
| Wheel | 18 | Tyre type | PU | |
| 19 | Tyre size, front wheel | mm | 82.5*165 | |
| 20 | Tyre size, drive wheel | mm | 310*110 | |
| 21 | Tyre size, balance wheel | mm | 100*40 | |
| 22 | Tyre number, front/drive/balance | 2/1/2 | ||
| 23 | Track width, front wheel | b11 (mm) | 454 | |
| 24 | Track width, drive wheel | b10 (mm) | 712 | |
| Performance | 25 | Travel speed, laden/unladen | km/h | 10/12 |
| 26 | Lift speed, laden/unladen | mm/s | 250/300 | |
| 27 | Max. gradeability, laden/unladen | % | 5/15 | |
| Electrical | 28 | Drive motor | kw | 3.5 |
| 29 | Lift motor | kw | 2.2 | |
| 30 | Steer motor | kw | 0.4 | |
| 31 | Battery type | Lead acid | ||
| 32 | Battery, voltage/capacity | V/AH | 24V 300AH | |
| 33 | Battery option | Lithium | ||
| 34 | Type of drive control | AC | ||
| 35 | Steering type | EPS | ||
| 36 | Service brake | Electromagnetic |
CMH® retains the right to adjust the specification and configurations to improve the performance without notice, please contact us at info@cmhlift.com to get the newest information.
