TECHNICAL SPECIFICATION
| 1 | Brand | CMH | CMH | CMH | |

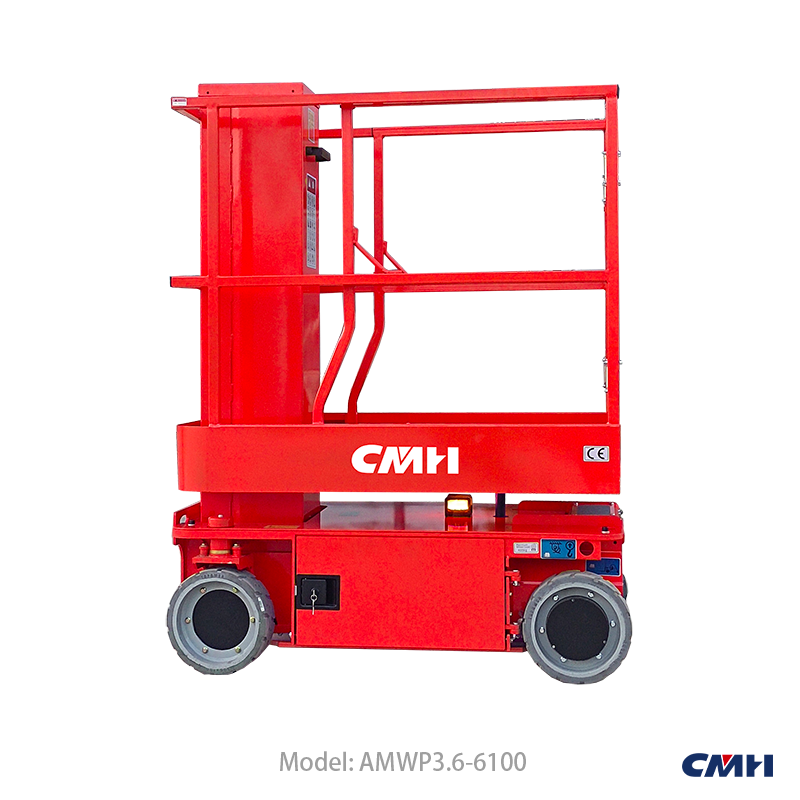

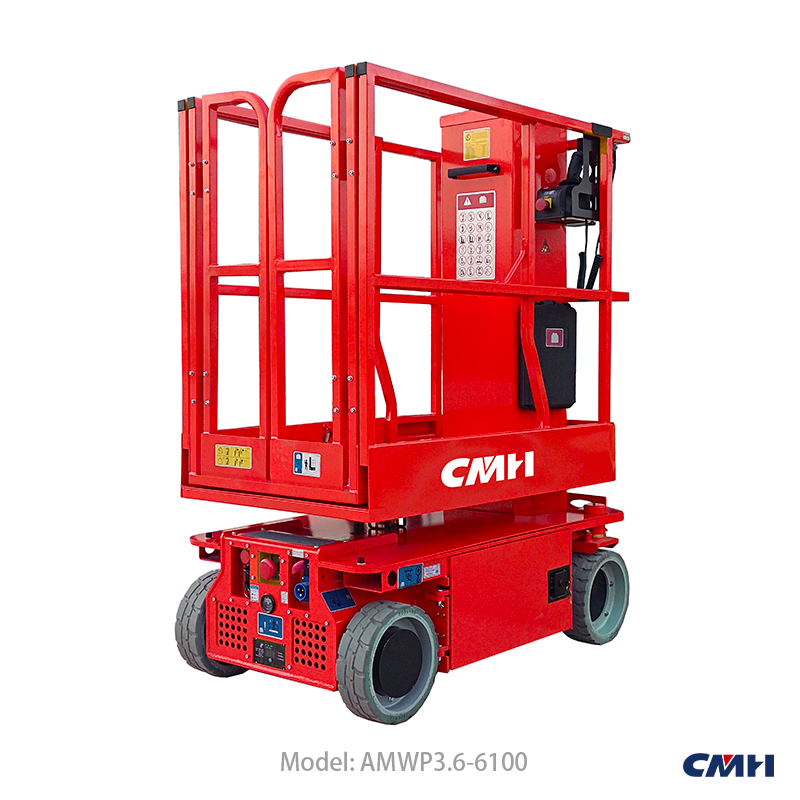

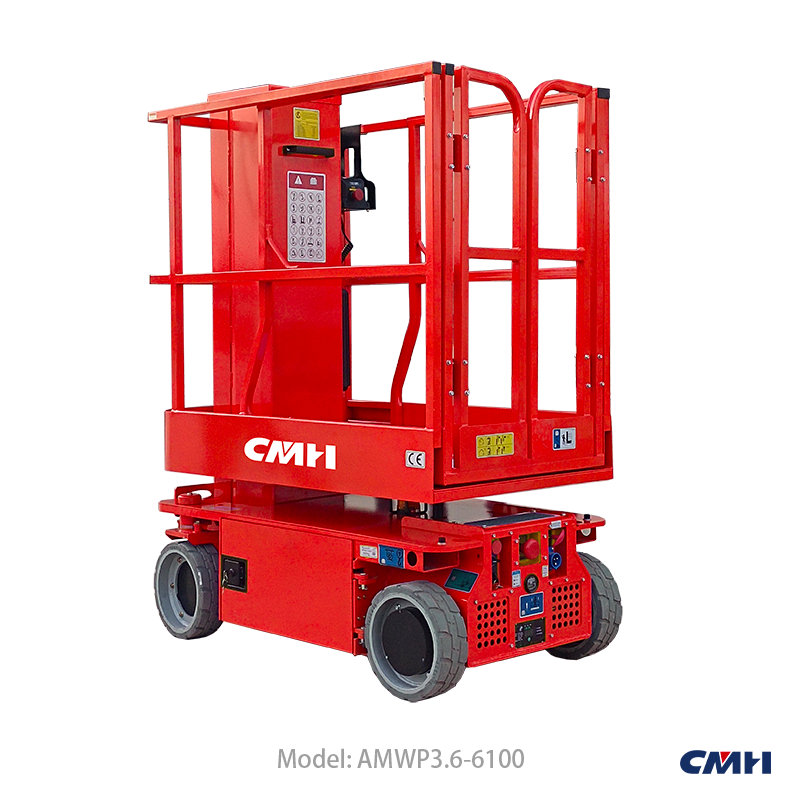

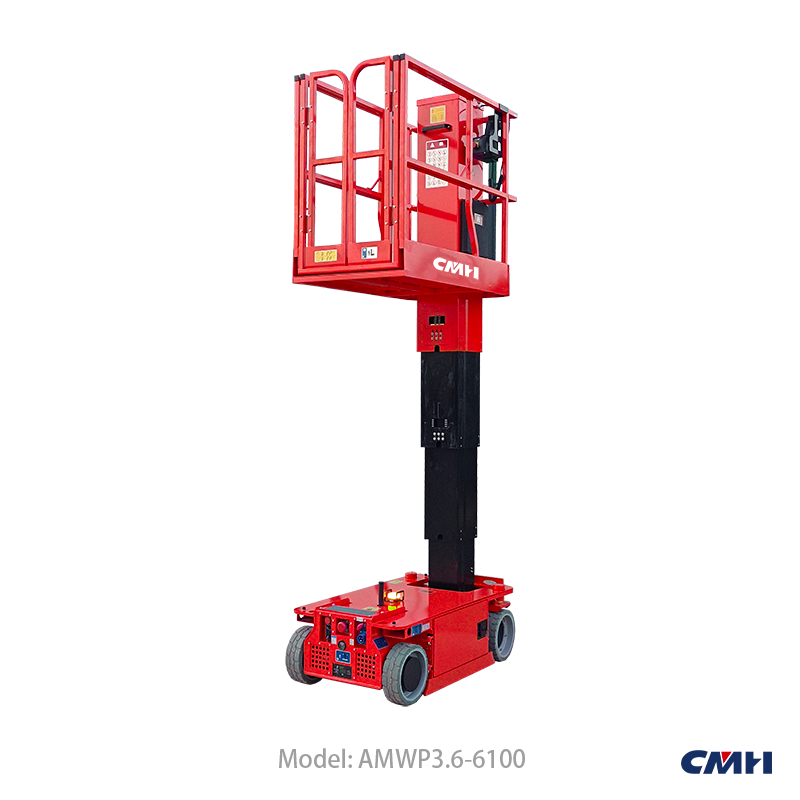

| 2 | Model | AMWP3.6-6100 | AMWP4.8-6100 | AMWP6-6100 | |
| 3 | Rated Capacity | kg | 227 | 227 | 159 |
| 4 | Rated Capacity of Extended Platform | kg | 114 | 114 | 114 |
| 5 | Max Working Height | mm | 5600 | 6800 | 8000 |
| 6 | Max Platform Height | mm | 3600 | 4800 | 6000 |
| 7 | Overall Length | mm | 1360 | 1360 | 1360 |
| 8 | Overall Width | mm | 760 | 760 | 820 |
| 9 | Overall Height | mm | 1700 | 1980 | 1980 |
| 10 | Platform Size | mm | 1300x700x1100 | 1300x700x1100 | 1280x700x1100 |
| 11 | Extended Platform Size | mm | 510 | 510 | 510 |
| 12 | Min Ground Clearance (Lowered) | mm | 100 | 100 | 100 |
| 13 | Min Ground Clearance (Lifting) | mm | 23 | 23 | 23 |
| 14 | Wheel Base | mm | 1040 | 1040 | 1040 |
| 15 | Min Turning Radius (Inside) | mm | 300 | 300 | 300 |
| 16 | Min Turning Radius (Outside) | mm | 1800 | 1800 | 1800 |
| 17 | Lift Motor | kw | 1.3 | 1.3 | 1.3 |
| 18 | Drive Motor | kw | 0.5 | 0.5 | 0.5 |
| 19 | Driving Speed (Lowered) | km/h | 4 | 4 | 4 |
| 20 | Driving Speed (Lifting) | km/h | 1.1 | 1.1 | 1.1 |
| 21 | Lifting Speed | sec | 31 | 41.5 | 52 |
| 22 | Lowering Speed | sec | 32 | 42 | 53 |
| 23 | Battery | V/AH | 2×12V/100AH | 2×12V/100AH | 2×12V/100AH |
| 24 | Charger | V/A | 24V/15A | 24V/15A | 24V/15A |
| 25 | Max Gradeability | % | 25% | 25% | 25% |
| 26 | Max Working Angle | ° | 1.5 | 1.5 | 1.5 |
| 27 | Wheel | mm | Φ305*100 | Φ305*100 | Φ305*100 |
| 28 | Net Weight | kg | 810 | 980 | 1060 |
CMH® retains the right to adjust the specification and configurations to improve the performance without notice, please contact us at info@cmhlift.com to get the newest information.
