Manual Stacker 0.5-2.0T Straddle Type

Manual Stacker 0.5-2.0T Straddle Type

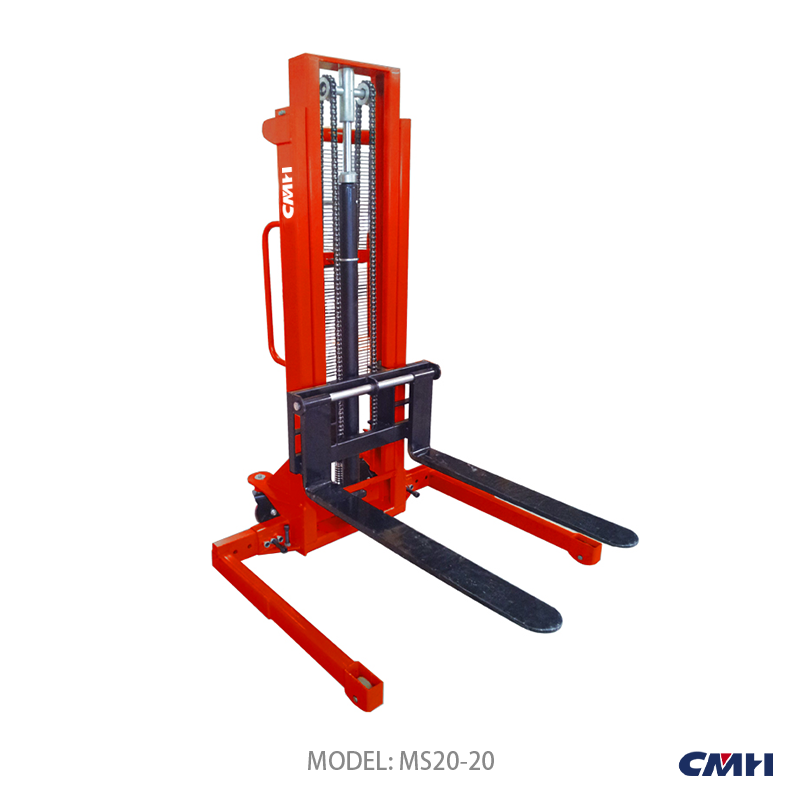

  • MODEL: MS05-12 / MS10-16 / MS15-16 / MS20-16 / MS10-20 / MS10-25 / MS10-30 / MS15-20 / MS15-25 / MS15-30 / MS20-20
  • Rated Capacity: 500kg / 1000kg / 1500kg / 2000kg
  • Power Supply: Manual
  • Operating Type: Pedestrian
  • Remaining parameters: Refer to the product description

CMH® retains the right to adjust the specification and configurations to improve the performance without notice, please contact us at info@cmhlift.com to get the newest information.

Category: Tag:

TECHNICAL SPECIFICATION

1 Brand CMH CMH CMH CMH CMH CMH CMH CMH CMH CMH CMH
2 Model MS05-12 MS10-16 MS15-16 MS20-16 MS10-20 MS10-25 MS10-30 MS15-20 MS15-25 MS15-30 MS20-20
3 Mast Type Simplex Duplex Duplex Duplex
4 Rated Capacity kg 500 1000 1500 2000 1000 1000 1000 1500 1500 1500 2000
5 Max. Fork Height mm 1200 1600 1600 1600 2000 2500 3000 2000 2500 3000 2000
6 Min. Fork Height mm 85 85 85 85 85 85 85 85 85 85 85
7 Power Supply Manual Manual Manual Manual Manual Manual Manual Manual Manual Manual Manual
8 Operating Type Pedestrian Pedestrian Pedestrian Pedestrian Pedestrian Pedestrian Pedestrian Pedestrian Pedestrian Pedestrian Pedestrian
9 Fork Size(mm) mm 550×800 550×1150 550×1150 550×1150 550×1150 550×1150 550×1150 550×1150 550×1150 550×1150 550×1150
10 Outer Width of Support Legs mm 490 490 490 490 490 490 490 490 490 490 490
11 Adjusting Width mm N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
12 Front wheel mm Φ80*58 Φ80*58 Φ80*58 Φ80*58 Φ80*58 Φ80*58 Φ80*58 Φ80*58 Φ80*58 Φ80*58 Φ80*58
13 Loaded Wheel mm Φ150*35 Φ180*50 Φ180*50 Φ180*50 Φ180*50 Φ180*50 Φ180*50 Φ180*50 Φ180*50 Φ180*50 Φ180*50
14 Overall Length mm 1300 1600 1600 1600 1600 1600 1600 1600 1600 1600 1600
15 Overall Width mm 760 760 700 700 700 700 700 700 700 700 700
16 Overall Height mm 1540 2030 2030 2030 1580 1840 2080 1580 1840 2080 2080
17 Net Weight kg 100 224 240 270 290 310 330 290 310 330 330

CMH® retains the right to adjust the specification and configurations to improve the performance without notice, please contact us at info@cmhlift.com to get the newest information.
