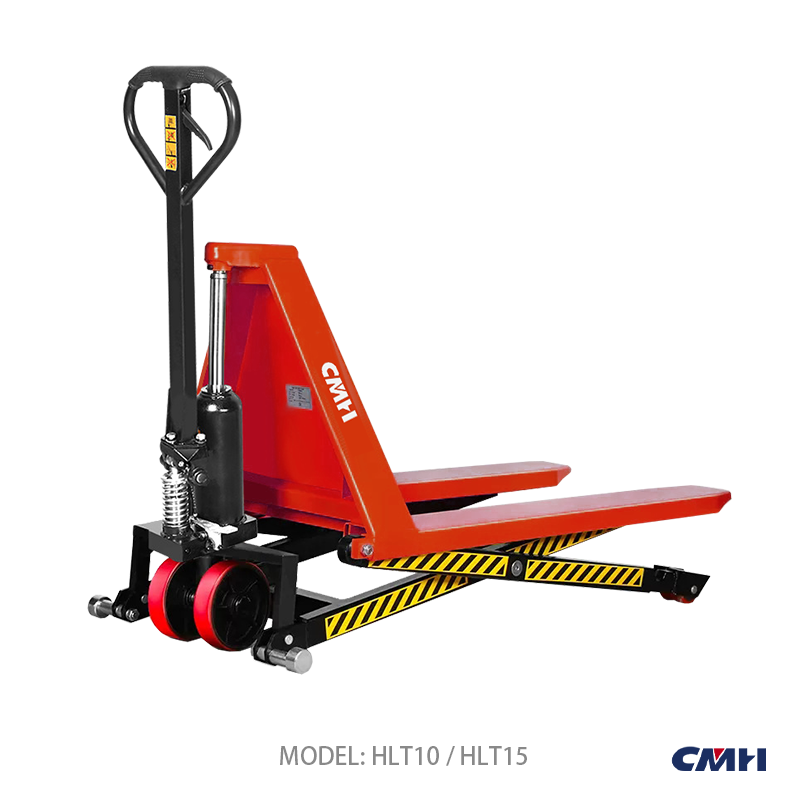

TECHNICAL SPECIFICATION: CMH High Lift Pallet Truck ( Scissor Lift Pallet Truck )
| 型号 Model | HLT10 | HLT15 | |
| 额定载荷 / Rated Capacity | kg | 1000 | 1500 |
| 动力类型 / Power Type | Manual | Manual | |
| 操作类型 / Operating Type | Pedestrian | Pedestrian | |
| 货叉外宽 / Outer Fork Width | mm | 540 | 680 |
| 单货叉宽度 / Single Fork Width | mm | 162 | 162 |
| 货叉长度 / Fork Length | mm | 1150 | 1150 |
| 最小货叉高度 / Min. Fork Height | mm | 85 | 85 |
| 最大货叉高度 / Max. Fork Height | mm | 800 | 800 |
| 承载轮 / Load Wheel | Nylon/PU | Nylon/PU | |
| 导向轮 / Guide Wheel | Nylon/PU/Rubber | Nylon/PU/Rubber | |
| 设备自重 / Self Weight | kg | 125 | 135 |
CMH® retains the right to adjust the specification and configurations to improve the performance without notice, please contact us at info@cmhlift.com to get the newest information.
