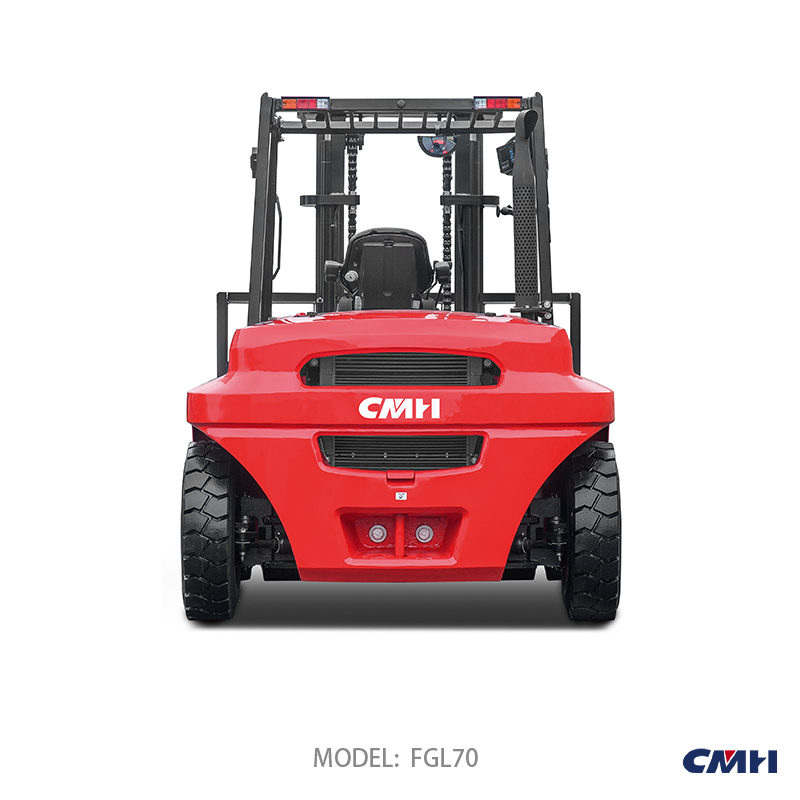

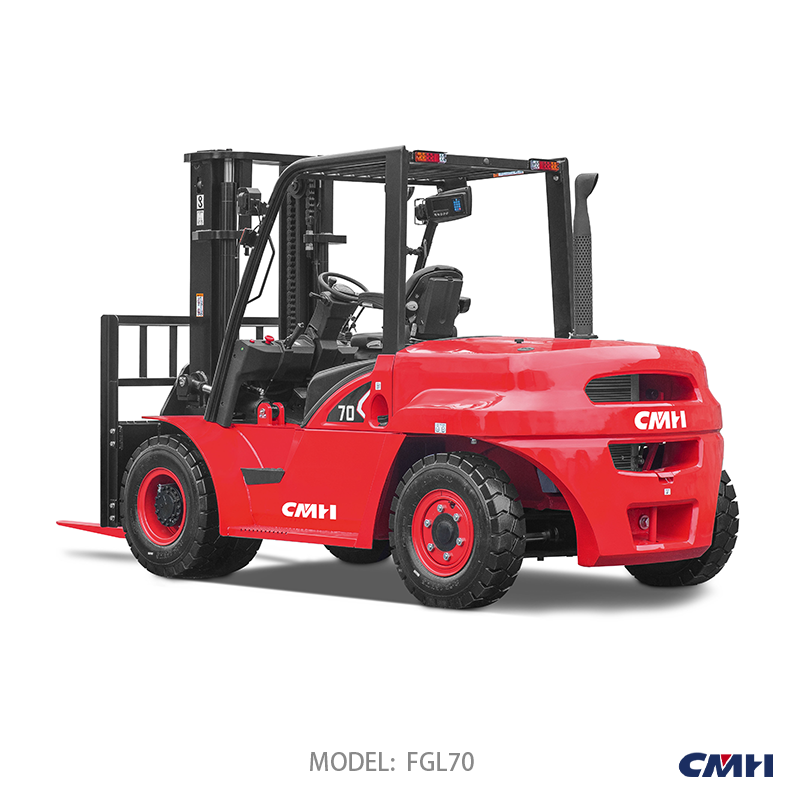

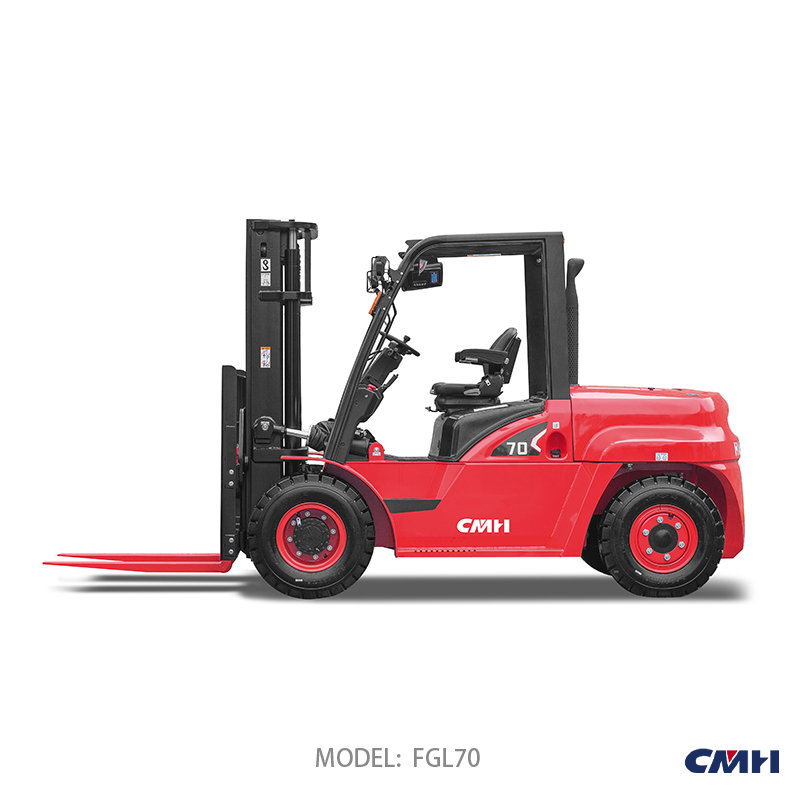

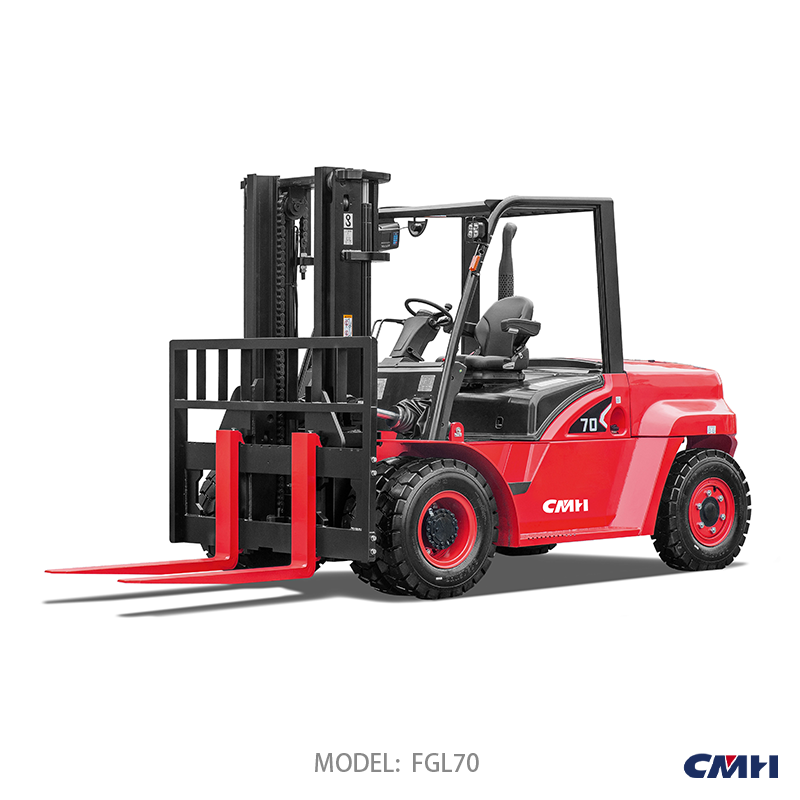

TECHNICAL SPECIFICATION
| Distinguishing mark |
1.1 | Brand | CMH | CMH | CMH | |
| 1.2 | Model number | FGL50 | FGL60 | FGL70 | ||
| 1.3 | Drive type | Gasoline+LPG | Gasoline+LPG | Gasoline+LPG | ||
| 1.4 | Operator type | Seated | Seated | Seated | ||
| 1.5 | Load capacity/rated load | Q (kg) | 5000 | 6000 | 7000 | |
| 1.6 | Load centre distance | c(mm) | 600 | 600 | 600 | |
| 1.8 | Load distance, centre of drive axle to fork | x(mm) | 600 | 600 | 605 | |
| 1.9 | Wheelbase | y(mm) | 2300 | 2300 | 2300 | |
| Weight | 2.1 | Service weight | kg | 8150 | 8700 | 9400 |
| 2.2 | Axle loading, laden front/rear | kg | 11490/1660 | 12930/1770 | 14770/1630 | |
| 2.3 | Axle loading, unladen front/rear | kg | 3860/4290 | 3810/4890 | 3910/5490 | |
| Tyres, chassis | 3.1 | Tyres | pneumatic | pneumatic | pneumatic | |
| 3.2 | Tyre size, front | 8.25-15-14PR | 8.25-15-14PR | 8.25-15-14PR | ||
| 3.3 | Tyre size, rear | 8.25-15-14PR | 8.25-15-14PR | 8.25-15-14PR | ||
| 3.5 | Wheels，number front rear (x = driven wheels) | 4x/2 | 4x/2 | 4x/2 | ||
| 3.6 | Tread, front | b10 (mm) | 1489 | 1489 | 1489 | |
| 3.7 | Tread, rear | b11 (mm) | 1700 | 1700 | 1700 | |
| Dimensions | 4.1 | Tilt of mast/fork carriage forward/backward | α/β(°) | 10/12 | 10/12 | 10/12 |
| 4.2 | Height, mast lowered | h1 (mm) | 2500 | 2500 | 2500 | |
| 4.3 | Free lift | h2 (mm) | 100 | 100 | 95 | |
| 4.4 | Lift | h3 (mm) | 2940 | 2940 | 2935 | |
| Lift height | h23 (mm) | 3000 | 3000 | 3000 | ||
| 4.5 | Height, mast extended | h4 (mm) | 4407 | 4407 | 4407 | |
| 4.7 | Height of overhead guard （cabin） | h6 (mm) | 2400 | 2400 | 2400 | |
| 4.8 | Seat height relating to SIP | h7 (mm) | 1320 | 1320 | 1320 | |
| 4.12 | Coupling height | h10 (mm) | 430 | 430 | 430 | |
| 4.19 | Overall length | l1 (mm) | 4720 | 4750 | 4825 | |
| 4.20 | Length to face of forks | l2 (mm) | 3500 | 3530 | 3530 | |
| 4.21 | Overall width | b1(mm) | 1990 | 1990 | 1990 | |
| 4.22 | Fork dimensions | s/e/l (mm) | 60x150x1220 | 60x150x1220 | 60x150x1220 | |
| 4.23 | Fork carriage DIN 15173, class/type A, B | IV A | IV A | IV A | ||
| 4.24 | Fork-carriage width | b3 (mm) | 1850 | 1850 | 1850 | |
| 4.31 | Ground clearance, laden, mast | m1 (mm) | 190 | 190 | 190 | |
| 4.32 | Ground clearance, centre of wheelbase | m2 (mm) | 270 | 270 | 270 | |
| 4.33 | Aisle width for pallets 1000 x 1200 crossways | Ast (mm) | 5030 | 5080 | 5155 | |
| 4.34 | Aisle width for pallets 800 x 1200 lengthways | Ast (mm) | 5230 | 5280 | 5355 | |
| 4.35 | Turning radius | Wa (mm) | 3230 | 3280 | 3350 | |
| 4.36 | Internal turning radius | b13 (mm) | 1150 | 1150 | 1150 | |
| Performance data | 5.1 | Travel speed, laden/unladen | km/h | 27/30 | 27/30 | 27/30 |
| 5.2 | Lift speed, laden/unladen | m/s | 0.540/0.580 | 0.540/0.580 | 0.480/0.510 | |
| 5.3 | Lowering speed, laden/unladen | m/s | 0.480/0.420 | 0.480/0.420 | 0.480/0.420 | |
| 5.5 | Drawbar pull,laden/unden | N | 68000/24000 | 68000/24000 | 68000/24000 | |
| 5.7 | Gradeability, laden/unladen | % | 43/20 | 41/20 | 39/20 | |
| 5.10 | Service brake | Hydraulic | Hydraulic | Hydraulic | ||
| Parking brake | Mechnical | Mechnical | Mechnical | |||
| Combustion- engine |
7.1 | Engine manufacturer/type | PSI-4.3L | PSI-4.3L | PSI-4.3L | |
| Emission standard | / | / | / | |||
| 7.2 | Engine power acc.to ISO 1585 | kW | 74 | 74 | 74 | |
| 7.3 | Rated speed | r/min | 2300 | 2300 | 2300 | |
| 7.4 | No. of cylinders/displacement | (-) / (cm ) | 6/4297 | 6/4297 | 6/4297 | |
| 7.9 | Vehicle electrical system voltage | V | 24 | 24 | 24 | |
| 7.10 | Battery voltage/nominal capacity | V/Ah | 2-12/90 | 2-12/90 | 2-12/90 | |
| Rated torque | N·m/r/min | 301/1700 | 301/1700 | 301/1700 | ||
| Transmissions Manufacturer | China | China | China | |||
| Transmissions Type | Powershift | Powershift | Powershift | |||
| Stage FWD/RVS | 2/2 | 2/2 | 2/2 | |||
| Addition data | 10.1 | Operating pressure for attachments | bar | 190 | 190 | 190 |
| 10.2 | Oil volume for attachments | l/min | 132 | 132 | 132 | |
| 10.3 | Hydraulic Tank – Capacity (drain & refill) | liter | 120 | 120 | 120 | |
| 10.4 | Fuel tank capacity | liter | 150 | 150 | 150 | |
| 10.7 | Sound level at the driver’s ear according to DIN 12053 | dB (A) | 89 | 89 | 89 | |
| 10.8 | Towing coupling,type DIN 15170 | Pin | Pin | Pin |
CMH® retains the right to adjust the specification and configurations to improve the performance without notice, please contact us at info@cmhlift.com to get the newest information.
