TECHNICAL SPECIFICATION
| Characteristics | 1.1 | Manufacturer | CMH | CMH | CMH | CMH | CMH | CMH | |

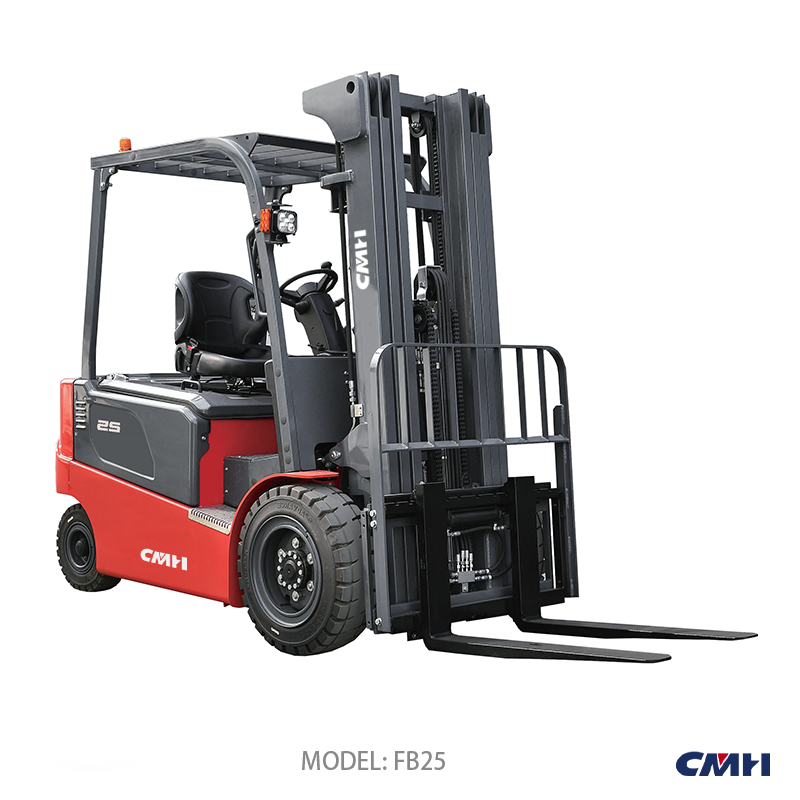

| 1.2 | Model number | FB20 | FB25 | FB20 | FB25 | FB20 | FB25 | ||
| Serial | H | H | M | M | S * standard | S * standard | |||
| 1.3 | Power type | Battery | Battery | Battery | Battery | Battery | Battery | ||
| 1.4 | Operation | Seated | Seated | Seated | Seated | Seated | Seated | ||
| 1.5 | Load capacity | Q(kg) | 2000 | 2500 | 2000 | 2500 | 2000 | 2500 | |
| 1.6 | Load center distance | C(mm) | 500 | 500 | 500 | 500 | 500 | 500 | |
| 1.7 | Front overhang | x(mm) | 450 | 450 | 450 | 450 | 450 | 450 | |
| 1.8 | Wheelbase | y(mm) | 1650 | 1650 | 1650 | 1650 | 1650 | 1650 | |
| Weight | 2.1 | Service Weight(incl/excl. battery) | kg | / | / | / | / | / | / |
| 2.2 | Axle load, laden, front/rear | kg | / | / | / | / | / | / | |
| 2.3 | Axle load, unladen, front/rear | kg | / | / | / | / | / | / | |
| Wheel | 3.1 | Tyre type,front/rear | Pneumatic | Pneumatic | Pneumatic | Pneumatic | Pneumatic | Pneumatic | |
| 3.2 | Tyre size, front | 7.00-12-14PR | 7.00×12-14PR | 7.00-12-14PR | 7.00-12-14PR | 7.00-12-14PR | 7.00-12-14PR | ||
| 3.3 | Tyre size, rear | 18×7-8-14PR | 18×7-8-14PR | 18×7-8-14PR | 18×7-8-14PR | 18×7-8-14PR | 18×7-8-14PR | ||
| 3.4 | Wheels,number front/rear (X=driven) | 2X/2 | 2X/2 | 2X/2 | 2X/2 | 2X/2 | 2X/2 | ||
| 3.5 | Track width, front | b10(mm) | 970 | 970 | 970 | 970 | 970 | 970 | |
| 3.6 | Track width, rear | b11(mm) | 960 | 960 | 960 | 960 | 960 | 960 | |
| Dimension | 4.1 | Mast tilt angle front/rear | α/β(°) | 6/10 | 6/10 | 6/10 | 6/10 | 6/10 | 6/10 |
| 4.2 | Mast retracted height | h1(mm) | Refer to the mast specification | Refer to the mast specification | Refer to the mast specification | Refer to the mast specification | Refer to the mast specification | Refer to the mast specification | |
| 4.3 | Free Lift height | h2(mm) | 150 | 150 | 150 | 150 | 150 | 150 | |
| 4.4 | Rated weight lifting height | h3(mm) | 3300 | 3300 | 3300 | 3300 | 3300 | 3300 | |
| 4.5 | Lift height | h3(mm) | Refer to the mast specification | Refer to the mast specification | Refer to the mast specification | Refer to the mast specification | Refer to the mast specification | Refer to the mast specification | |
| 4.6 | Mast extended height | h4(mm) | Refer to the mast specification | Refer to the mast specification | Refer to the mast specification | Refer to the mast specification | Refer to the mast specification | Refer to the mast specification | |
| 4.7 | Overhead guard height | h6(mm) | 2150 | 2150 | 2150 | 2150 | 2150 | 2150 | |
| 4.8 | Seat height | h7(mm) | 1130 | 1130 | 1130 | 1130 | 1130 | 1130 | |
| 4.9 | Towing pin height | h10(mm) | 250 | 250 | 250 | 250 | 250 | 250 | |
| 4.10 | Overall length | L1(mm) | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | |
| 4.11 | Body to fork surface length | L2(mm) | 2430 | 2430 | 2430 | 2430 | 2430 | 2430 | |
| 4.12 | Overall width | b1/b2(mm) | 1160/1140 | 1160/1140 | 1160/1140 | 1160/1140 | 1160/1140 | 1160/1140 | |
| 4.13 | Fork dimensions | l/e/s(mm) | 1070/122/40 | 1070/122/40 | 1070/122/40 | 1070/122/40 | 1070/122/40 | 1070/122/40 | |
| 4.14 | Installation level (IS02328) | 2A | 2A | 2A | 2A | 2A | 2A | ||
| 4.15 | Fork carriage width | b3(mm) | 1040 | 1040 | 1040 | 1040 | 1040 | 1040 | |
| 4.16 | Fork outside spread | b5(mm) | 1000～244 | 1000～244 | 1000～244 | 1000～244 | 1000～244 | 1000～244 | |
| 4.17 | Ground clearance below mast | m1(mm) | 120 | 120 | 120 | 120 | 120 | 120 | |
| 4.18 | Ground clearance,body | m2(mm) | 125 | 125 | 125 | 125 | 125 | 125 | |
| 4.19 | Aisle width with pallet 1000*1200mm, C=500mm | mm | 3754 | 3754 | 3754 | 3754 | 3754 | 3754 | |
| Aisle width with pallet 800*1200mm, C=600mm | mm | 3950 | 3950 | 3950 | 3950 | 3950 | 3950 | ||
| More aisle width | mm | Refer to the aisle specification | Refer to the aisle specification | Refer to the aisle specification | Refer to the aisle specification | Refer to the aisle specification | Refer to the aisle specification | ||
| 4.20 | Turning radius | Wa(mm) | 2100 | 2100 | 2100 | 2100 | 2100 | 2100 | |
| Performance | 5.1 | Travelling speed, laden/unladen | km/h | 18/19 | 18/19 | 14.5/15 | 14.5/15 | 12/13 | 12/13 |
| 5.2 | Lift speed, laden/unladen | mm/s | 380/490 | 350/490 | 290/440 | 290/440 | 260/400 | 260/400 | |
| 5.3 | Lowering speed, laden/unladen | mm/s | 400/400 | 400/400 | 400/400 | 400/400 | 400/400 | 400/400 | |
| 5.4 | Maximum tractive force, laden/unladen | N | 19000 | 19000 | 14000 | 14000 | 11000 | 11000 | |
| 5.5 | Gradeability, laden/unladen (S2-2min) | %(tanθ) | 22/28 | 20/28 | 17/26 | 15/25 | 15/25 | 15/25 | |
| 5.6 | Acceleration time of 10 meters, laden/unladen | S | |||||||
| 5.7 | Service brake | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | ||
| 5.8 | Park brake | Mechanical | Mechanical | Mechanical | Mechanical | Mechanical | Mechanical | ||
| Drive | 6.1 | Drive motor, rating S2=60 | kw | AC16.6 | AC16.6 | AC11 | AC11 | AC11 | AC11 |
| 6.2 | Lift motor, rating S3=15% | kw | AC21 | AC21 | AC12 | AC12 | AC12 | AC12 | |
| 6.4 | Lead-acid battery voltage/capacity, standard | V/Ah | / | / | 48/600 | 48/600 | 48/500 | 48/500 | |
| 6.5 | Battery capacity, optional | V/Ah | / | / | 500 | 500 | 600 | 600 | |
| 6.6 | Maximum battery capacity of the side pull model | Ah | / | / | 600 | 600 | 600 | 600 | |
| 6.5 | Battery weight | kg | / | / | 920 | 920 | 820 | 820 | |
| 6.7 | Lithium battery voltage/capacity, standard | V/Ah | 80/300 | 80/300 | 48/300 | 48/300 | 48/300 | 48/300 | |
| 6.8 | Lithium battery voltage/capacity, optional | V/Ah | 80/400 | 80/400 | 48/460 | 48/460 | 48/460 | 48/460 | |
| 6.9 | Lithium battery weight | kg | 345 | 345 | 345 | 345 | 345 | 345 | |
| 7.1 | Hydraulic system pressure | Mpa | 21.5 | 21.5 | 21.5 | 21.5 | 21.5 | 21.5 |
CMH® retains the right to adjust the specification and configurations to improve the performance without notice, please contact us at info@cmhlift.com to get the newest information.
