TECHNICAL SPECIFICATION
| General | 1 | Brand | CMH | |

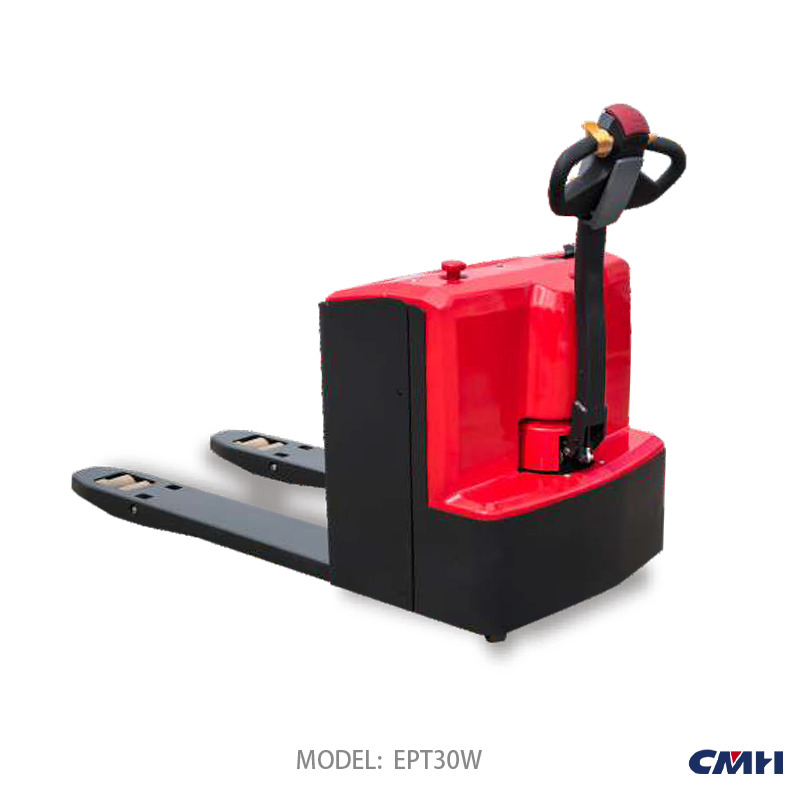

| 2 | Model | EPT30W | ||
| 3 | Power type | Battery | ||
| 4 | Operation type | Pedestrian | ||
| 5 | Rated capacity | kg | 3000 | |
| 6 | Load center | mm | 600 | |
| 7 | Service weight | kg | 405 | |
| Dimension | 8 | Lift height | mm | 200 |
| 9 | Fork lowered height | mm | 85 | |
| 10 | Overall length | mm | 1870 | |
| 11 | Overall width | mm | 760 | |
| 12 | Fork size | mm | 1200×180 | |
| 13 | Fork outer width | mm | 550/680 | |
| 14 | Min. turning radius | mm | 1950 | |
| 15 | Aisle width for pallet 1000×1200 | mm | 2430 | |
| 16 | Aisle width for pallet 800×1200 | mm | 2560 | |
| Wheel | 17 | Tyre type | PU | |
| 18 | Tyre size, drive wheel | mm | 230*75 | |
| 19 | Tyre size, load wheel | mm | 80*95 | |
| 20 | Tyre size, balance wheel | mm | 100×40 | |
| 21 | Tread, front | mm | 518 | |
| 22 | Tread, rear | mm | 307/505 | |
| Performance | 23 | Travel speed, laden/unladen | km/h | 4.5/6.0 |
| 24 | Lift speed, laden/unladen | mm/s | 250/300 | |
| 25 | Lowering speed, laden/unladen | mm/s | 300/250 | |
| 26 | Max. gradeability, laden/unladen | % | 5/12 | |
| Electrical | 27 | Drive motor | kw | 1.3 |
| 28 | Lift motor | kw | 0.8 | |
| 29 | Battery type | Gel | ||
| 30 | Battery, voltage/capacity | V/AH | 4×12/85 | |
| 31 | Battery option | Lithium | ||
| 32 | Type of drive control | DC | ||
| 33 | Steering type | Mechanical | ||
| 34 | Service brake | Electromagnetic |
CMH retains the right to adjust the specification and configurations to improve the performance without notice, please contact us at info@cmhlift.com to get the newest information.
