TECHNICAL SPECIFICAITON
| Standard | ||||
| 1.1 | Brand | CMH | CMH | |

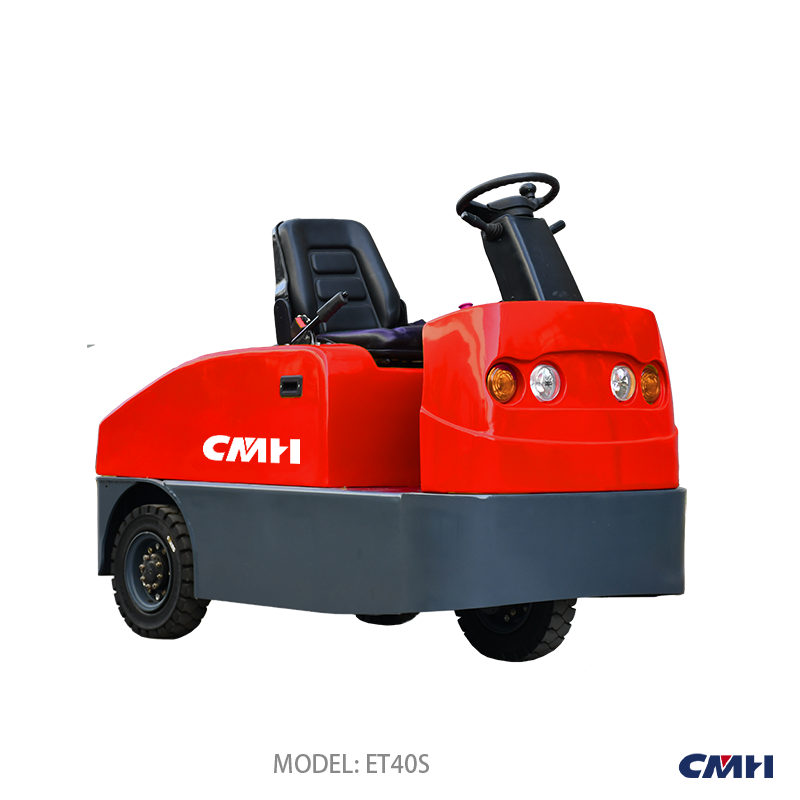

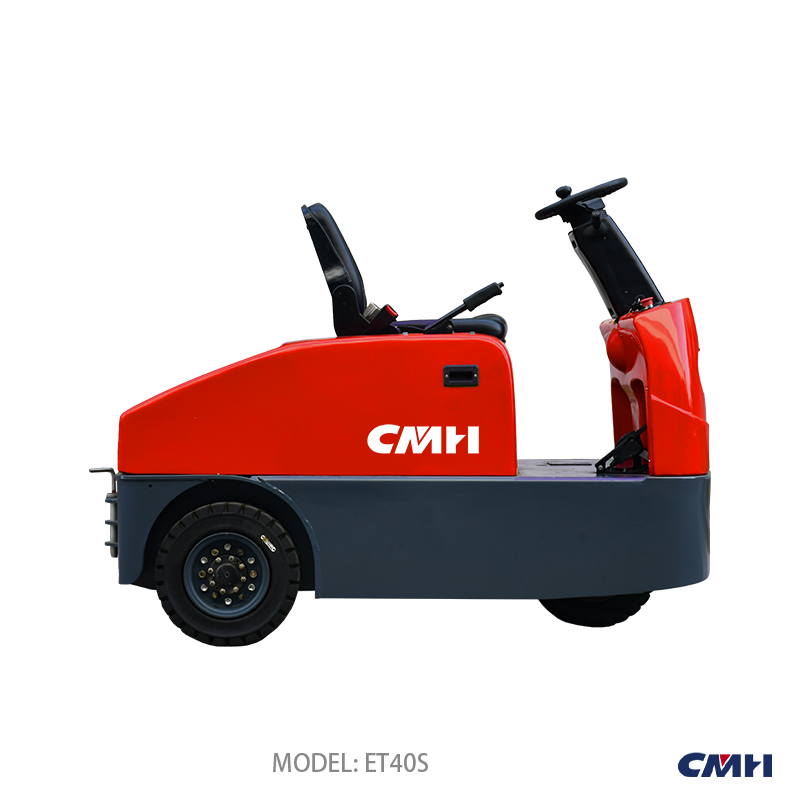

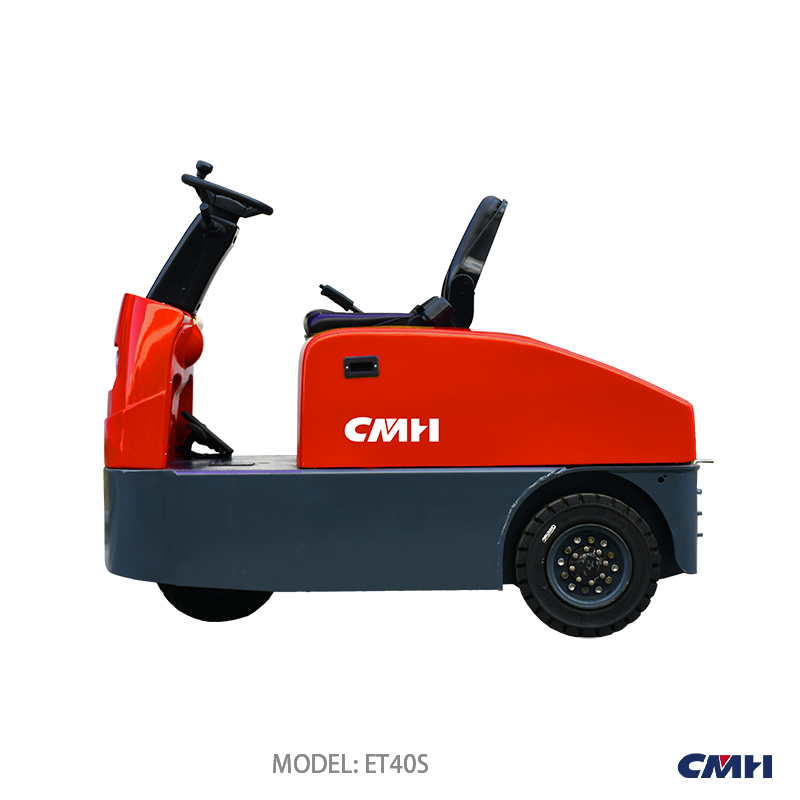

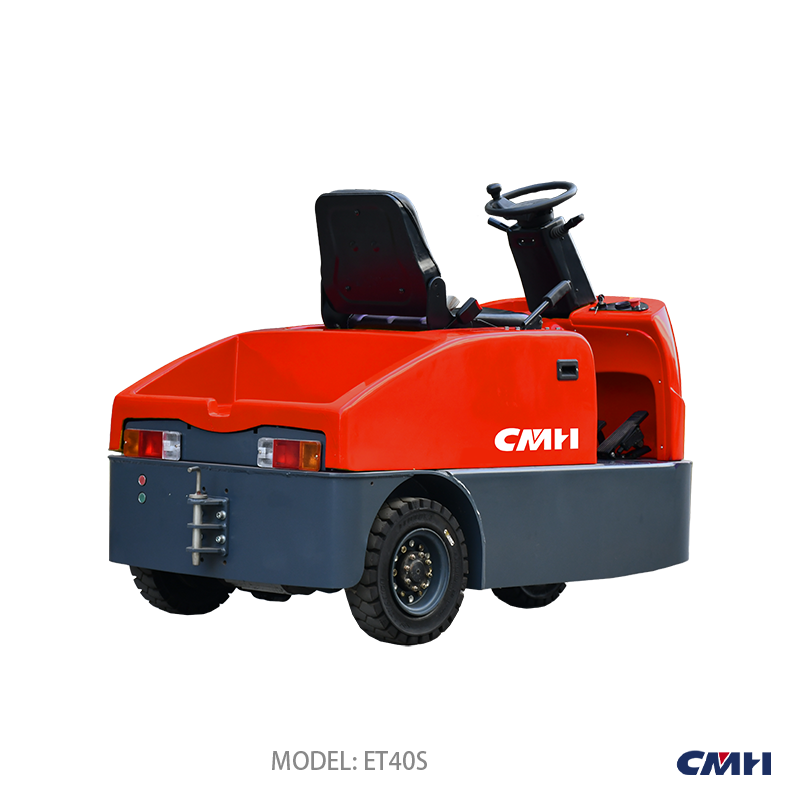

| 1.2 | Model | ET40S | ET60S | |
| 1.3 | Power type | Battery | Battery | |
| 1.4 | Operation type | Seat | Seat | |
| 1.5 | Rated drawbar pull | F(N) | 800 | 1200 |
| 1.6 | Wheel base | y(mm) | 1040 | 1040 |
| Weight | ||||
| 2.1 | Service weight(incl. battery) | kg | 920 | 1000 |
| 2.2 | Axle loading, laden front/back | kg | / | / |
| 2.3 | Axle loading, unladen front/back | kg | 365/555 | 410/590 |
| Wheel | ||||
| 3.1 | Tyre,front/back | Solid /Pneumatic tyre | Solid /Pneumatic tyre | |
| 3.2 | Tyre size,front | mm | 4.00-8 | 4.00-8 |
| 3.3 | Tyre size,back | mm | 4.00-8/6PR | 4.00-8/6PR |
| 3.5 | Wheels number,front/back(x=driven) | 1/2X | 1/2X | |
| 3.6 | Tread, front | b10(mm) | 870 | 870 |
| 3.7 | Tread, back | b11(mm) | 0 | 0 |
| Size | ||||
| 4.1 | Height of overhead guard( include cabin) | h6(mm) | 2045 | 2045 |
| 4.2 | Seat height | h7(mm) | 895 | 895 |
| 4.3 | Coupling height | h10(mm) | 210/275/340/405 | 210/275/340/405 |
| 4.4 | Loading height,unladen | h11(mm) | 610 | 610 |
| 4.5 | Length of loading platform | l3(mm) | 790 | 790 |
| 4.6 | Rear overhang | l5(mm) | 405 | 405 |
| 4.7 | Width of loading platform | b9(mm) | 390 | 390 |
| 4.8 | Overall length | l1(mm) | 1790 | 1790 |
| 4.9 | Overall width | b1(mm) | 990 | 990 |
| 4.10 | Body ground clearance | m2(mm) | 140 | 140 |
| 4.11 | Turning radius | Wa(mm) | 1650 | 1650 |
| 4.12 | Internal turning radius | b13(mm) | 600 | 600 |
| Function | ||||
| 5.1 | Travel speed (load/unload) | km/h | 8/14 | 7/17 |
| 5.2 | Tractive force(S2-5min) | N | 3800 | 4500 |
| 5.3 | Max. climbing ability, load/unload (S2-5min) | %(tanθ ) | Reference climbing curve | |
| 5.4 | Service brake | Hydraulic brake/Regenerative brake | ||
| Drive | ||||
| 6.1 | Drive motor rating(S2-60 min) | kw | 3 | 4.5 |
| 6.2 | Battery voltage/rated capacity | V/Ah | 24/490 | 48/280 |
| 6.3 | Battery weight | kg | 390 | 475 |
| 6.4 | Steering System | EPS | EPS | |
| Others | ||||
| 7.1 | Noise level at operator’s ear | dB(A) | 66 | 66 |
